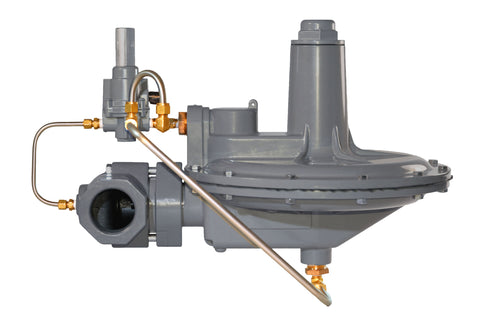

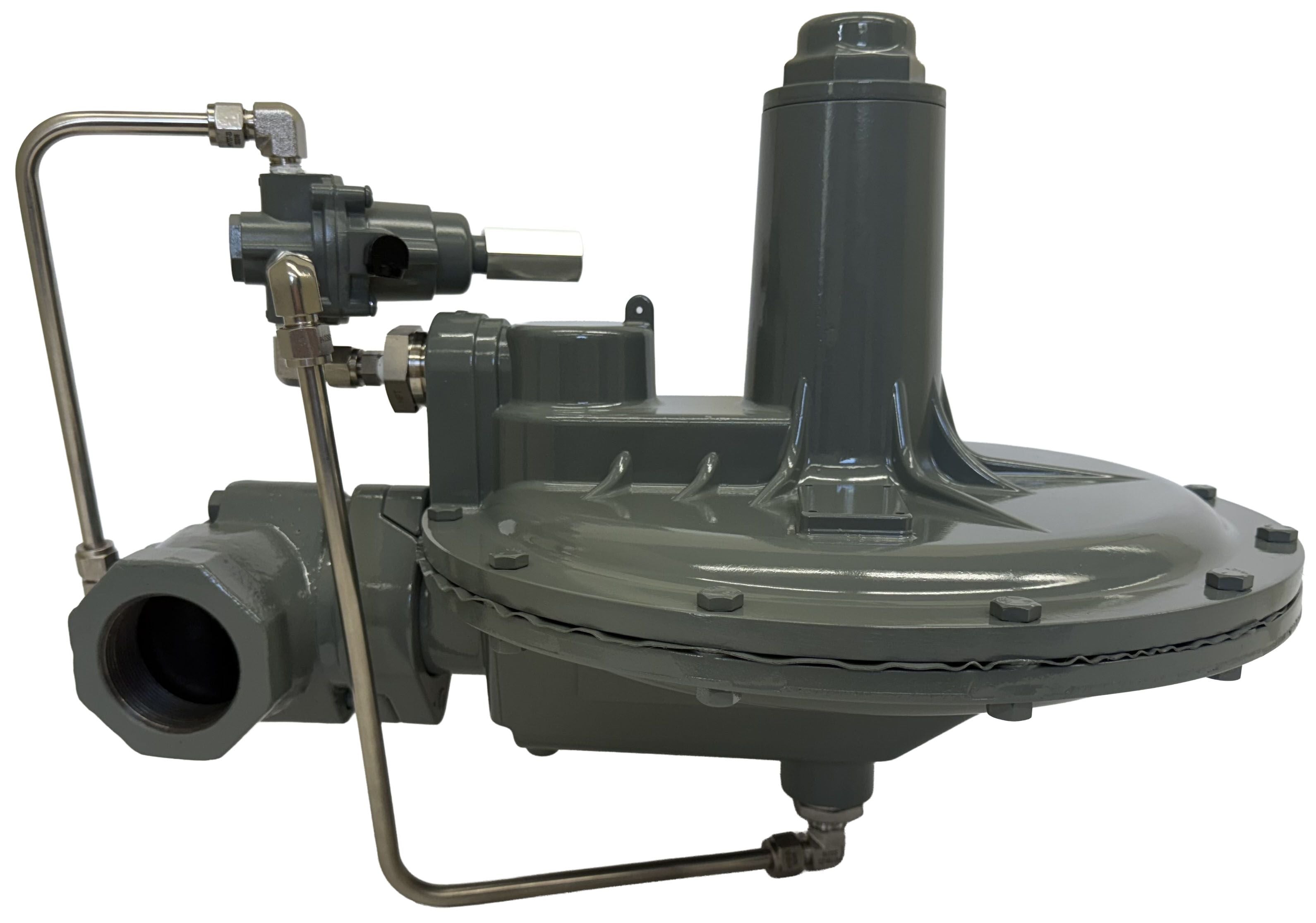

BelGAS 200 Series - F200 Pilot Operated Gas Pressure Regulator
The BelGAS F200 is a pilot operated adjustable regulator. The F200 series is used in applications where high accuracy pressure regulation is required. The regulator will reduce the risk of shock from abrupt changes of downstream conditions. This can help prevent safety equipment from shutting an operation down.
Features:- External or Internal Pressure Registration
- Minimize Sudden Downstream Load Change
- Quick Response Time / High Accuracy
- Compressors
- Gas Engines
- Service Regulators
- Fixed Factor Billing
Model
F200
Series
Type 200
Port Size
1.25" NPT
1.5" NPT
1.5" NPT x 2" NPT
2" NPT
1.5" NPT
1.5" NPT x 2" NPT
2" NPT
Connections
150 RF Flange (Steel Units Only)
125 FF Flange (Iron Units Only)
125 FF Flange (Iron Units Only)
Orifice Size
1/4"
3/8"
1/2"
3/4"
1"
1-3/16"
3/8"
1/2"
3/4"
1"
1-3/16"
Pilot Operated
Yes
Connection
NPT,
Flanged
Flange Type
125 FF Flanged,
150 RF Flanged
Product Description
F200 Pilot Operated Gas Pressure Regulator
Temperature Range(s)
-20˚F to 180˚F
-29˚C to 82˚C
-29˚C to 82˚C
Max Inlet Body Pressure
125 PSI
8.618 BAR
8.618 BAR
Maximum Outlet Pressure
15 PSIG
Maximum Input/Supply Pressure
125 PSI
8.618 BAR
8.618 BAR
Body, Bonnet, Diaphragm Material
Plug Spring Seat Aluminum
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
