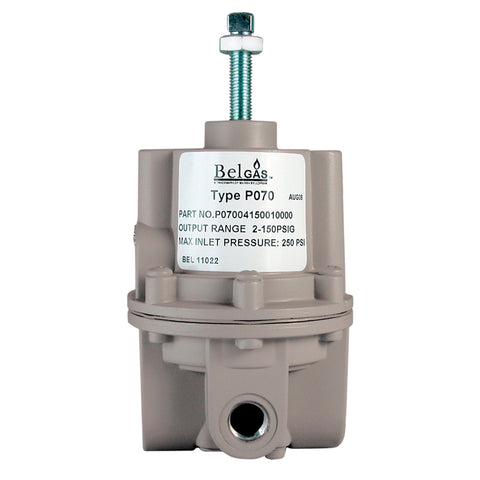

P70 & P70 NACE Regulators
The P70 Regulators are reliable precision units designed for use with actuators, positioners, instrumentation, and general purpose use. These BelGAS regulators are generally superior in regulated pressure vs. flow, forward-to-reverse flow offset, supply pressure sensitivity, repeatability and stability. Ruggedly designed and constructed, the regulators have housings of diecast aluminum.
Features:- Superior regulation characteristics
- Rugged, corrosion-resistant construction
- Excellent stability and repeatability
- High Flow Capacity (80 SCFM)
- Self-relieving
- Standard tapped vent
- Soft relief seat for low gas consumption
- Several mounting options
- Instrumentation and general purpose use
Pilot Operated
No
Connection
NPT
Application(s)
Industrial
Diaphragm Material
P70 - Buna-N Elastomer with Polyester Fabric
P70 NACE - Fluorocarbon with Dacron Fabric
P70 NACE - Fluorocarbon with Dacron Fabric
Body, Bonnet, Diaphragm Material
Body: Die Cast Aluminum
Adjusting Screw:
P70 - Zinc Plated Steel
P70 NACE - 316 Stainless Steel
Trim: Plated Steel , Brass, Acetal Resin
Knob: Phenolic Plastic (option)
Spring: Music Wire
Diaphragm Material:
P70 - Buna-N Elastomer with Polyester Fabric
P70 NACE - Fluorocarbon with Dacron Fabric
Adjusting Screw:
P70 - Zinc Plated Steel
P70 NACE - 316 Stainless Steel
Trim: Plated Steel , Brass, Acetal Resin
Knob: Phenolic Plastic (option)
Spring: Music Wire
Diaphragm Material:
P70 - Buna-N Elastomer with Polyester Fabric
P70 NACE - Fluorocarbon with Dacron Fabric
Mounting
Pipe, Panel or Bracket
Temperature Range(s)
-40 to 200 ºF/ -40 to 93 ºC
Total Air Consumption @ Maximum Output
0.1 SCFH / 0.05 LPM
Spring Range
0-15 PSIG / 0-1.0 BAR
0-30 PSIG / 0-2.1 BAR
1-60 PSIG / 0.1-4.1 BAR
2-100 PSIG / 0.2-6.9 BAR
2-150 PSIG / 0.2-10.3 BAR
0-30 PSIG / 0-2.1 BAR
1-60 PSIG / 0.1-4.1 BAR
2-100 PSIG / 0.2-6.9 BAR
2-150 PSIG / 0.2-10.3 BAR
Effects of Changes in Flow on Regulated Pressure (100 PSIG/6.9 BAR supply)
2.5 PSIG (0.2 BAR)
over flow 50 SCFM (1416 LPM)
over flow 50 SCFM (1416 LPM)
Maximum Input/Supply Pressure
250 PSIG / 17.2 BAR
Exhaust Capacity (5 PSIG above 20 PSIG set point)
3 SCFM Typical / 85 LPM
Effects of Supply Pressure variation (25 PSIG) on Outlet Pressure
< 0.05 PSIG / 0.003 BAR
Flow Capacity
80 SCFM / 2266 LPM
Sensitivity
1/4" WC (6.4 mm)
Port Size
1/4 NPT, 3/8 NPT, 1/2 NPT
Product Description
P70 & P70 NACE Regulators
Model
P70 & P70 NACE
Series
Instrument Supply Series
Size
3.0" x 3.0" x 6.0" / 76 x 76 x 152 mm
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
