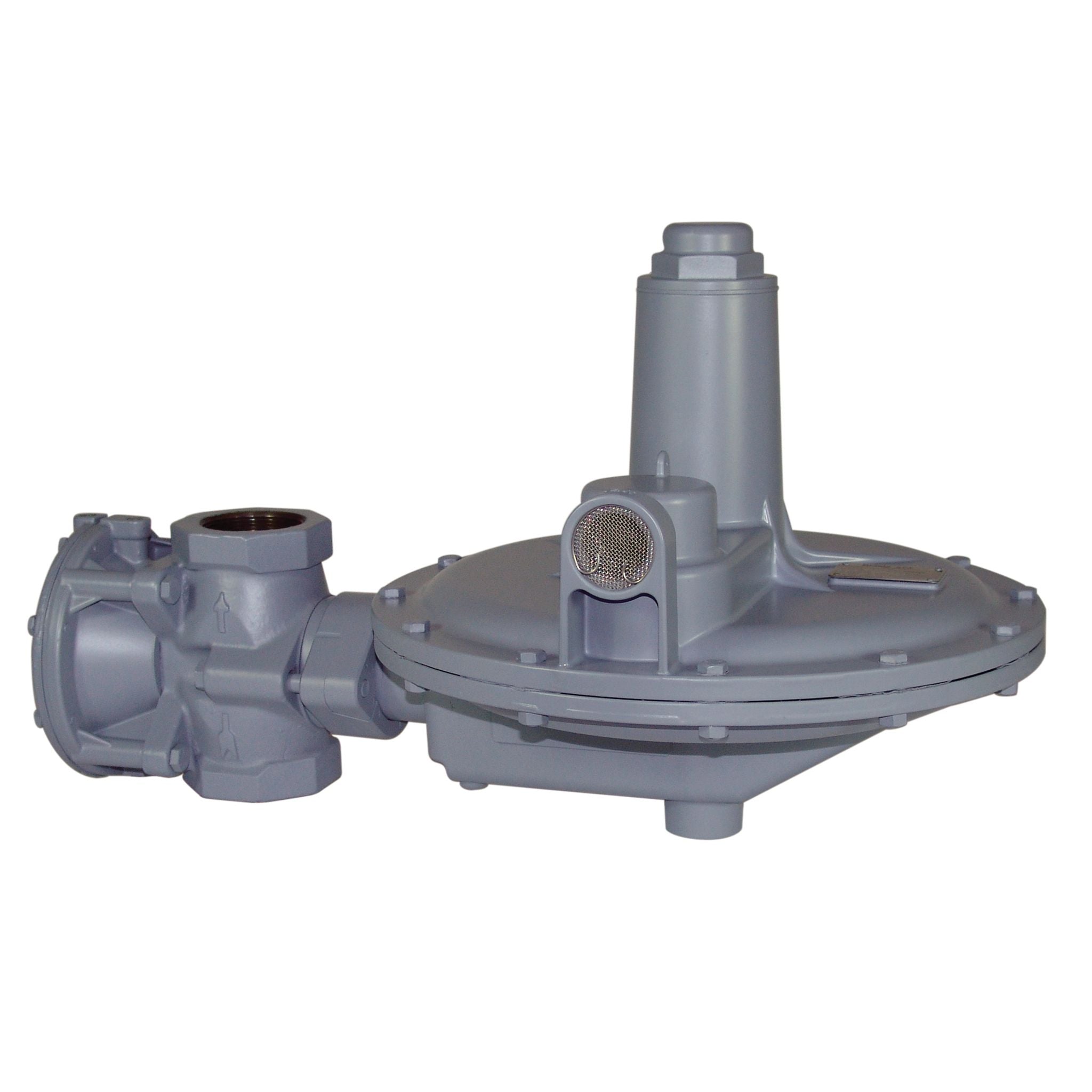

BelGAS 200 Series - P203 Pressure Reducing Regulator with Integrated Monitor
The BelGAS P203 and P203H gas pressure reducing regulators are available with a true monitor regulator, which acts independently of the main regulator. The monitor provides equivalent overpressure protection when compared to a standard two-regulator monitor setup. Should one regulator fail, the other regulator provides control and overpressure protection. The regulator’s fast action reduces the risk of shock from abrupt changes in downstream conditions and can help to prevent safety equipment from causing unnecessary, expensive, and time-consuming operation shutdowns.
Features:- Minimizes sudden downstream load changes
- Integral monitoring
- Internal relief
- Wide flow capacities
- Commercial/industrial/service
- Gas engine control
- Gate applications
Port Size
1.5 NPT, 1.5 NPT x 2 NPT, 2 NPT
Flange Type
125 FF Flanged,
150 RF Flanged
Seat Material
Nitrile
Rebuild Kits
Yes
Body, Bonnet, Diaphragm Material
Adjusting Screw Aluminum
Body Ductile Cast Iron
Bonnet Aluminum
Closing Cap Aluminum
Diaphragm Nitrile
Lower Casing Aluminum
Molded Seat Assembly Nitrile
Orifice Aluminum
Body Ductile Cast Iron
Bonnet Aluminum
Closing Cap Aluminum
Diaphragm Nitrile
Lower Casing Aluminum
Molded Seat Assembly Nitrile
Orifice Aluminum
Connection
NPT,
Flanged
Pilot Operated
No
Model
P203
Spring Range
O, P or S Version Only
use with G0 Monitor / 2 - 4.5 "
use with G1 Monitor / 3.5 - 6.5"
use with G1 Monitor / 5 - 9"
use with G2, R0, R1, B0 Monitor / 8.5 - 18"
use with R2, B1, SO Monitor / 14 - 30"
H, P or S Version
use with B2, S1 Monitor / 1 - 2 PSIG
use with S2, S3 Monitor / 1.5 - 3.25 PSIG
use with G0 Monitor / 2 - 4.5 "
use with G1 Monitor / 3.5 - 6.5"
use with G1 Monitor / 5 - 9"
use with G2, R0, R1, B0 Monitor / 8.5 - 18"
use with R2, B1, SO Monitor / 14 - 30"
H, P or S Version
use with B2, S1 Monitor / 1 - 2 PSIG
use with S2, S3 Monitor / 1.5 - 3.25 PSIG
Product Description
P203 Pressure Reducing Regulator
Temperature Range(s)
-20˚F to 180˚F
-29˚C to 82˚C
-29˚C to 82˚C
Application(s)
Pressure Protection, Commercial, Industrial
Orifice Size
1/4", 3/8", 1/2", 3/4", 1",
1-3/16"
1-3/16"
Series
Type 200 Series
Maximum Outlet Pressure
15 PSIG
Orifice Material
Aluminum
Max Inlet Body Pressure
125 PSIG (Varies on Orifice Size)
Diaphragm Material
Nitrile
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
