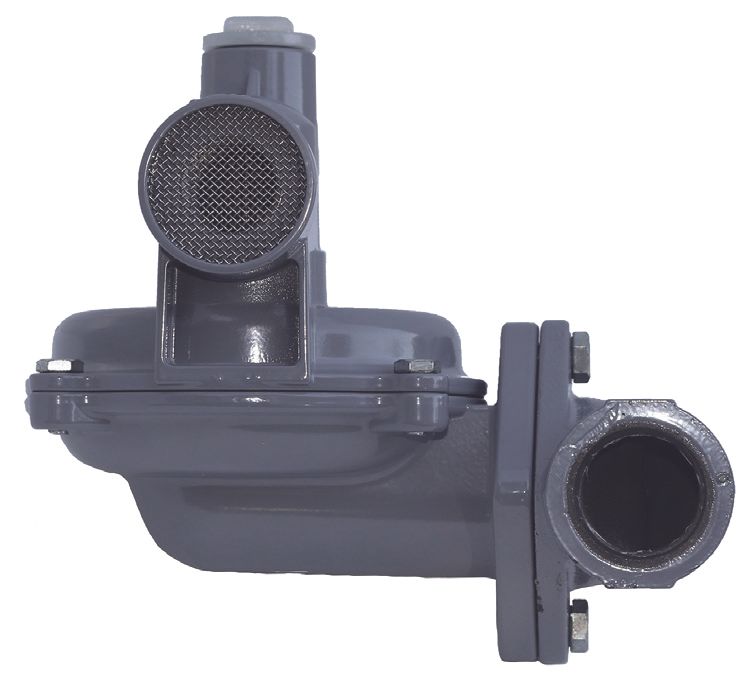

P140 Non-Relieving Gas Pressure Regulator
The P140 pressure regulator is ideal for natural gas, air, propane and general purpose gas pressure regulation. Uses include commercial, residential and light industrial for burners and unit heaters.
Features:- Versatile
- Control Accuracy
- Compact Design
- Natural Gas
- Propane
- Generators
- Small Boilers/Heaters
Pilot Operated
No
Connection
NPT
Application(s)
Residential, Commercial
Diaphragm Material
Diaphragm Nitrile
Diaphragm Type
Flat OR Convoluted Diaphragm
Body, Bonnet, Diaphragm Material
Disk
Temperature Range(s)
-20˚F to 150 ˚F
Spring Range
WC / mBAR
5" - 7" / 12 - 17
6" - 8" / 15 - 20
8" - 14" / 20 - 35
12" - 28" / 30 - 70
PSIG / mBAR
1 - 2 / 69 - 137
2 - 4 / 137 - 276 (Red Cap)
4 - 5 276 - 345
5" - 7" / 12 - 17
6" - 8" / 15 - 20
8" - 14" / 20 - 35
12" - 28" / 30 - 70
PSIG / mBAR
1 - 2 / 69 - 137
2 - 4 / 137 - 276 (Red Cap)
4 - 5 276 - 345
Orifice Size
1/8"
3/16"
1/4"
5/16"
3/8"
1/2"
3/16"
1/4"
5/16"
3/8"
1/2"
Port Size
3/4" NPT
3/4" x 1" NPT
1” NPT
1-1/4" NPT
3/4" x 1" NPT
1” NPT
1-1/4" NPT
Body Outlet Size
3/4" x 3/4"
3/4" x 1"
1” x 1"
1-1/4" x 1-1/4"
3/4" x 1"
1” x 1"
1-1/4" x 1-1/4"
Body Inlet Size
3/4" x 3/4"
3/4" x 1"
1” x 1"
1-1/4" x 1-1/4"
3/4" x 1"
1” x 1"
1-1/4" x 1-1/4"
Product Description
Type P140 Pressure Regulator- Non Relieveing
Series
Type 140 Series
Options
O2 Clean
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
