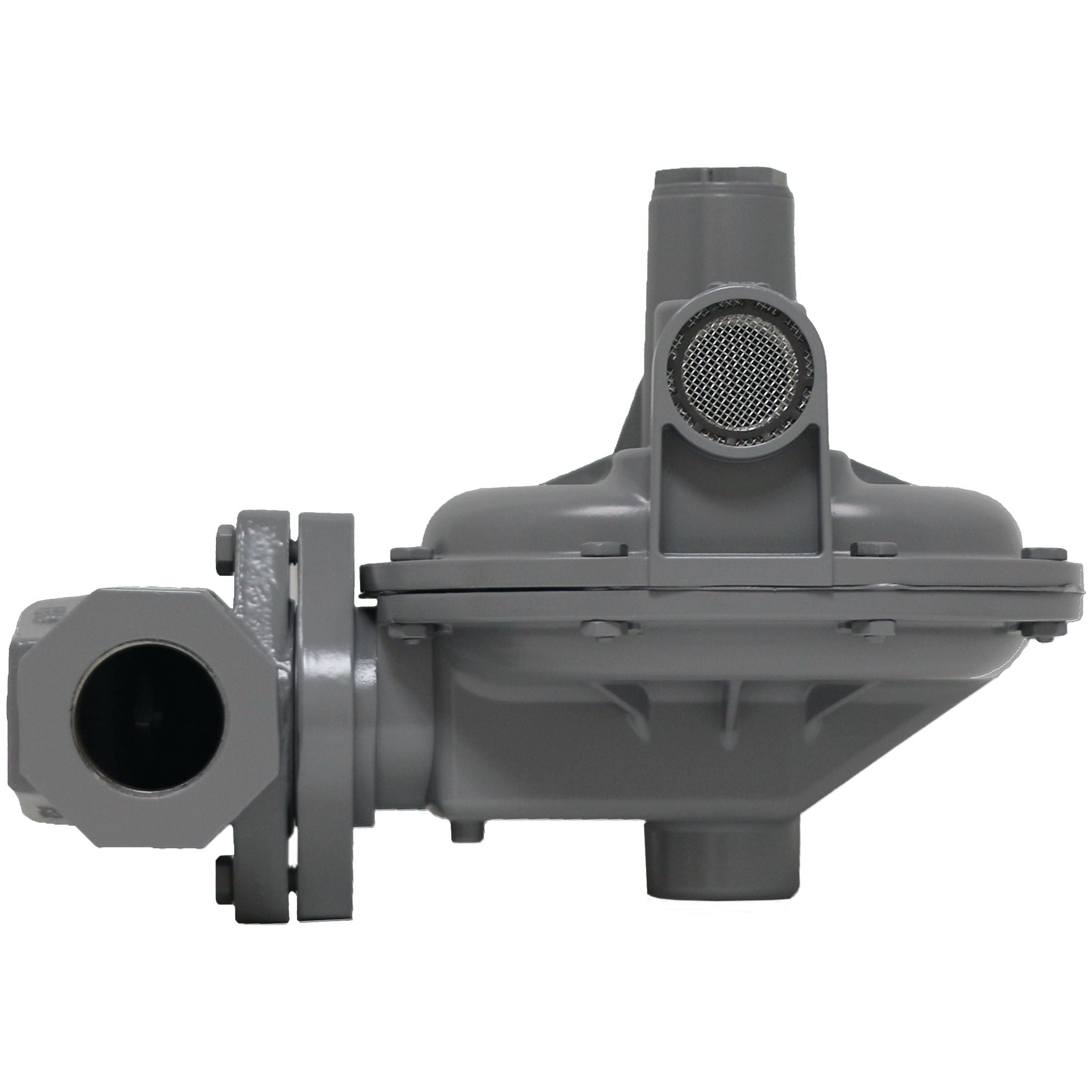

P302 Relieving Gas Pressure Regulator
The P302 Relieving Gas Pressure Regulator from BelGAS is a manual, direct acting, self-operating, spring-loaded adjustable pressure regulator. The P300 series is used in applications where pressure reduction is required. The regulator will reduce the risk of “shock” from abrupt changes of downstream conditions. This can help prevent safety equipment from shutting an operation down.
Features:- Minimize sudden downstream load change
- Wide pressure range
- P302 has internal relief value for overpressure protection
- Compressors
- Gas engines
- Service regulators
- City gate/district gate/air
- City gate/district gate/boiler pressure
- General purpose/high pressure
- Steam/air/water pressure regulation
Pilot Operated
No
Filter Flange Type
125 FF Flanged,
150 RF Flanged
Filter Connection
NPT,
Flanged
Application(s)
Commercial, Industrial
Diaphragm Material
Nitrile
Orifice Material
Aluminum
Seat Material
Nitrile
Body, Bonnet, Diaphragm Material
Adjusting Screw Aluminum
Body Ductile Cast Iron or
WCB Steel
Bonnet Aluminum
Closing Cap Zinc
Diaphragm Nitrile
Lower Casing Aluminum
Molded Seat Assembly Nitrile
Orifice Aluminum
Flange Ductile Iron / WCB
Steel
Body Ductile Cast Iron or
WCB Steel
Bonnet Aluminum
Closing Cap Zinc
Diaphragm Nitrile
Lower Casing Aluminum
Molded Seat Assembly Nitrile
Orifice Aluminum
Flange Ductile Iron / WCB
Steel
Temperature Range(s)
-20˚F to 180˚F
-29˚C to 82˚C
-29˚C to 82˚C
Spring Range
P301 & P302
3 - 6 WC
5 - 8.5 WC
6 - 14 WC
12 - 28 WC
P301H & P302H
1 - 2 PSIG
1.5 - 3 PSIG
2.5 - 5.5 PSIG
P301H Only
4.5 - 8 PSIG
3 - 6 WC
5 - 8.5 WC
6 - 14 WC
12 - 28 WC
P301H & P302H
1 - 2 PSIG
1.5 - 3 PSIG
2.5 - 5.5 PSIG
P301H Only
4.5 - 8 PSIG
Orifice Size
3/16"
1/4"
3/8"
1/2"
3/4"
1/4"
3/8"
1/2"
3/4"
Port Size
1.25 NPT
1.5 NPT
1.5 NPT x 2 NPT
2 NPT
1.5 NPT
1.5 NPT x 2 NPT
2 NPT
Body Sizes
1.25", 15", 1.5" x 2", 2"
Max Inlet Body Pressure
125 PSIG (Varies on Orifice size)
Product Description
P302 Relieving Gas Pressure Regulator
Model
P302
Series
Type 300 Series
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
