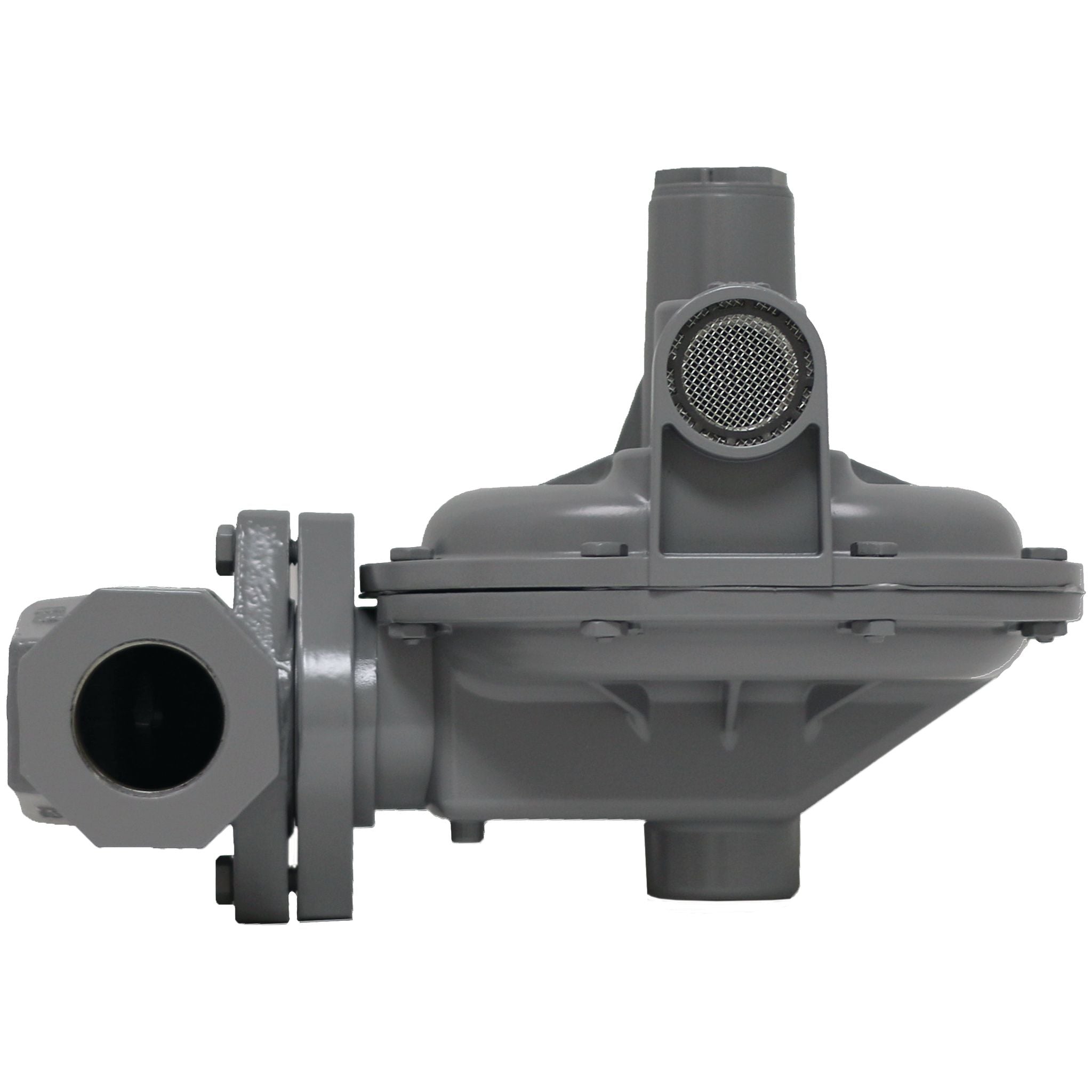

BelGAS 300 Series - P301 Non-Relieving Gas Pressure Regulator
The BelGAS P301 Non-Relieving Gas Pressure Regulator is a manual, direct-operated, spring-loaded adjustable pressure regulator. The P301 is used in applications where pressure reduction is required. The regulator will reduce the risk of shock from abrupt changes of downstream conditions. This can help prevent safety equipment from shutting an operation down.
Features:- Minimize sudden downstream load change
- Wide pressure range
- Compressors
- Gas Engines
- Service Regulators
- Boilers
- Generators
Model
P301
Series
Type 300 Series
Port Size
1.25 NPT
1.5 NPT
1.5 NPT x 2 NPT
2 NPT
1.5 NPT
1.5 NPT x 2 NPT
2 NPT
Body Sizes
1.25", 15", 1.5" x 2", 2"
Orifice Size
3/16"
1/4"
3/8"
1/2"
3/4"
1/4"
3/8"
1/2"
3/4"
Spring Range
P301 & P302
3 - 6 WC
5 - 8.5 WC
6 - 14 WC
12 - 28 WC
P301H & P302H
1 - 2 PSIG
1.5 - 3 PSIG
2.5 - 5.5 PSIG
P301H Only
4.5 - 8 PSIG
3 - 6 WC
5 - 8.5 WC
6 - 14 WC
12 - 28 WC
P301H & P302H
1 - 2 PSIG
1.5 - 3 PSIG
2.5 - 5.5 PSIG
P301H Only
4.5 - 8 PSIG
Seat Material
Nitrile
Application(s)
Commercial, Industrial
Pilot Operated
No
Orifice Material
Aluminum
Connection
NPT,
Flanged
Diaphragm Material
Nitrile
Flange Type
125 FF Flanged,
150 RF Flanged
Product Description
P301 Non-Relieving Gas Pressure Regulator
Temperature Range(s)
-20˚F to 180˚F
-29˚C to 82˚C
-29˚C to 82˚C
Max Inlet Body Pressure
125 PSIG (Varies on Orifice size)
Body, Bonnet, Diaphragm Material
Adjusting Screw Aluminum
Body Ductile Cast Iron or
WCB Steel
Bonnet Aluminum
Closing Cap Zinc
Diaphragm Nitrile
Lower Casing Aluminum
Molded Seat Assembly Nitrile
Orifice Aluminum
Flange Ductile Iron / WCB
Steel
Body Ductile Cast Iron or
WCB Steel
Bonnet Aluminum
Closing Cap Zinc
Diaphragm Nitrile
Lower Casing Aluminum
Molded Seat Assembly Nitrile
Orifice Aluminum
Flange Ductile Iron / WCB
Steel
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
