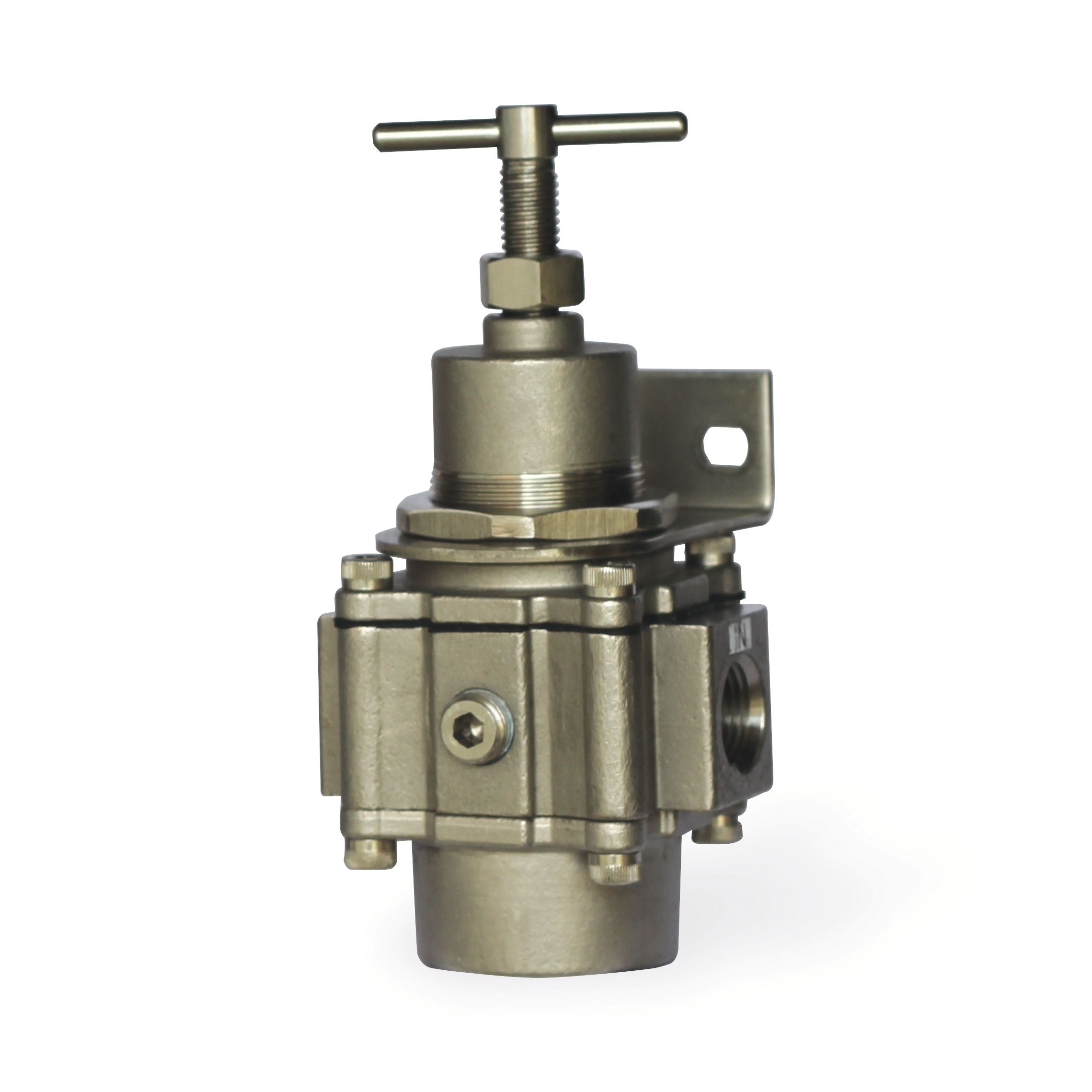

P52SS Stainless Steel Regulator and Filter/Regulator
The P52SS Regulator is designed for service with a wide variety of corrosive gases and severe environments. It is the ideal choice for sour gas applications and where a corrosive environment is present. The standard version of this regulator is relieving with no constant bleed. You must specify if a non-relieving regulator is required. Key components to the filter/regulator include a built in dripwell, 25 micron stainless filter. Both the regulator and filter/regulator come standard with Viton elastomers and a 'T' handle adjustment.
Features:- Wide range of port sizes, from 1/4″ to 1″ NPT
- Low droop
- Excellent stability and repeatability
- Tapped vent for exhaust gas capture
- Built-in filter assemblies and dripwells
- Manual or automatic drain options
- Panel, bracket or pipe mounting
- Sour gas
- Offshore oil, gas & petrochemical
- Corrosive environments
Pilot Operated
No
Connection
NPT
Application(s)
Industrial
Air Consumption
0.5 SCFH
Exhaust Capacity (scfm) @ 5 psid
0.1 SCFM
Flow Rate (scfm)
1/4" - 38 SCFM
3/8" - 42 SCFM
1/2" - 95 SCFM
3/4" - 105 SCFM
1" - 105 SCFM
3/8" - 42 SCFM
1/2" - 95 SCFM
3/4" - 105 SCFM
1" - 105 SCFM
Body, Bonnet, Diaphragm Material
316 SS Housing
Body and Filter,
Viton Elastomers
Body and Filter,
Viton Elastomers
Mounting
Bracket
Temperature Range(s)
-4 to 176˚F
Spring Range
3 - 30 PSIG
6 - 60 PSIG
12 - 125 PSIG
15 - 150 PSIG
6 - 60 PSIG
12 - 125 PSIG
15 - 150 PSIG
Sensitivity
± 1.0 PSIG Change in Output
Port Size
1/4 NPT, 3/8 NPT, 1/2 NPT, 3/4 NPT, 1NPT
Body Sizes
1/4 NPT, 3/8 NPT, 1/2 NPT, 3/4 NPT, 1NPT
Max Inlet Body Pressure
425 PSIG
Product Description
P52SS Sainless Steel Regulator and Filter/Regulator
Model
P52
Series
Instrument Supply Series
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
