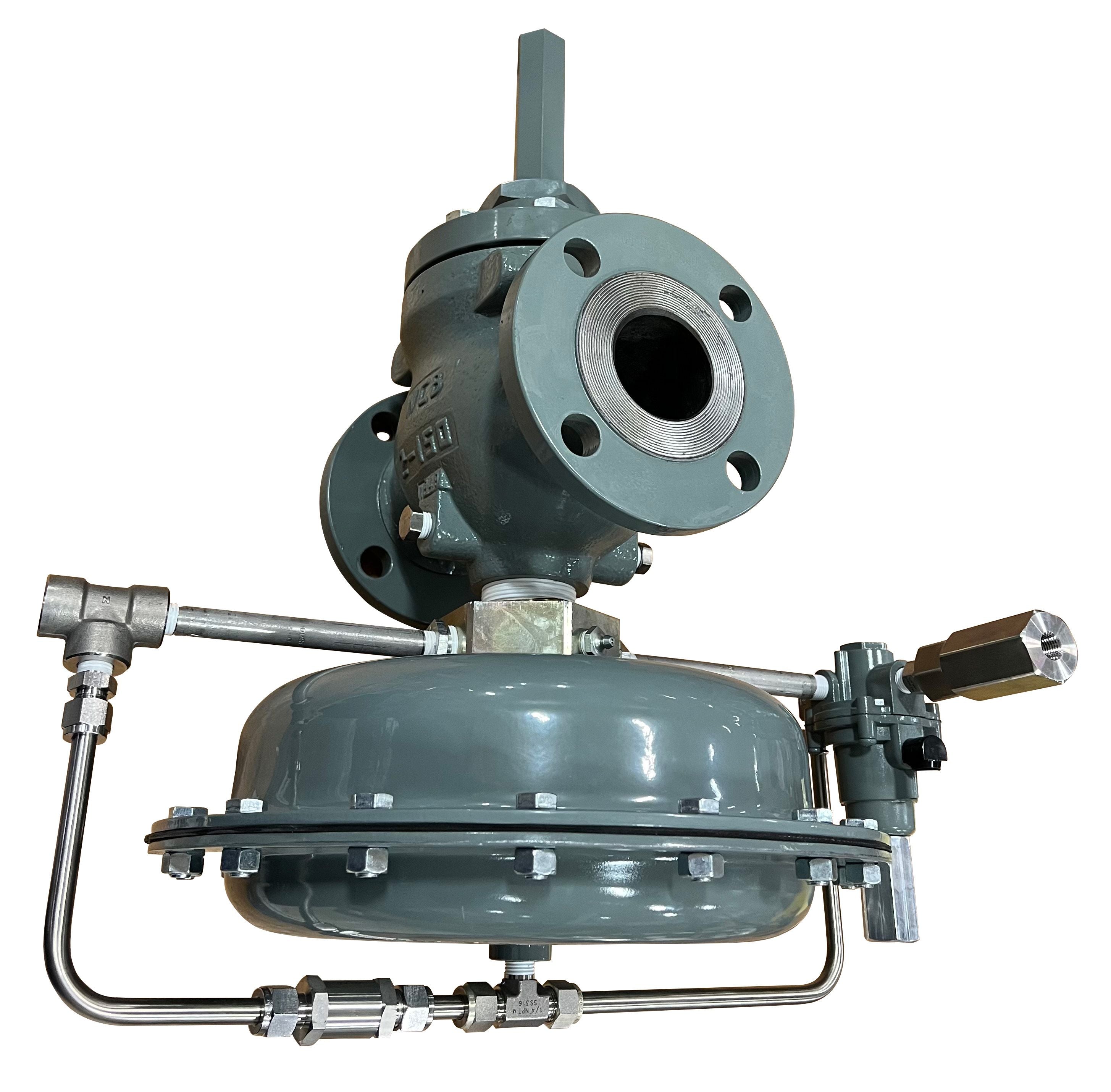

P1098 Pressure Reducing Regulator
The BelGAS P1098 pressure regulator is an accurate and economical pressure control device for large volume gas use in pressures from inches of water column up to 75 PSIG output pressure. The P1098 incorporates a two-path pilot system and a large area actuator diaphragm allowing for fast and accurate response to changing flow conditions. The pilot acts as an amplifier to the main regulator valve for precision control. Bubble tight shutoff is also achieved with a sharp-edged orifice and soft seat material.
Features:- Multiple Pilot Choices (Low to Extra High Pressure)
- Up to 250 PSI Main Valve Inlet
- Loading Pressure Bleeds Downstream (No Atmospheric Relief)
- City/District Gate Operation
- Commercial Buildings
- Boilers
- Furnaces
- Ovens
- Plant Air Systems
Pilot Operated
Yes
Flange Type
150 RF Flanged,
300 RF Flanged
Connection
NPT,
Flanged
Rebuild Kits
yes
Body, Bonnet, Diaphragm Material
Regulators:
Body
WCB Steel
Bonnet
Steel
Main Spring
Steel
Diaphragm
Nitrile / FKM
Trim
316 Stainless
Pilots:
Body
Aluminum / Iron
Spring Case
Aluminum / Iron
Diaphragms
Nitrile / FKM
Orifices
Stainless
Springs
Steel
Tubing & Fittings
316 Stainless
Body
WCB Steel
Bonnet
Steel
Main Spring
Steel
Diaphragm
Nitrile / FKM
Trim
316 Stainless
Pilots:
Body
Aluminum / Iron
Spring Case
Aluminum / Iron
Diaphragms
Nitrile / FKM
Orifices
Stainless
Springs
Steel
Tubing & Fittings
316 Stainless
Temperature Range(s)
Nitrile:
-20 to 180⁰ F
Fluorocarbon:
0 to 300⁰ F
-20 to 180⁰ F
Fluorocarbon:
0 to 300⁰ F
Spring Range
P600 Pilot Version:
4" WC up to 7 PSIG
PL81:
3 PSIG up to 100 PSIG
PL84:
14" WC up to 10 PSIG
PL61LD & PL61LE:
3" WC up to 20 PSIG
PL61H:
7" WC up to 65 PSIG
PL61HP:
15 up to 300 PSIG
4" WC up to 7 PSIG
PL81:
3 PSIG up to 100 PSIG
PL84:
14" WC up to 10 PSIG
PL61LD & PL61LE:
3" WC up to 20 PSIG
PL61H:
7" WC up to 65 PSIG
PL61HP:
15 up to 300 PSIG
Max Inlet Body Pressure
P600 Pilot Version:
150 PSIG
PL81:
250 PSIG
PL84:
150PSIG
PL61LD & PL61LE:
160 PSIG
PL61H:
400 PSIG
PL61HP:
600 PSIG
150 PSIG
PL81:
250 PSIG
PL84:
150PSIG
PL61LD & PL61LE:
160 PSIG
PL61H:
400 PSIG
PL61HP:
600 PSIG
Product Description
Type P1098 Pressure Reducing Regulator
Model
P1098
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
