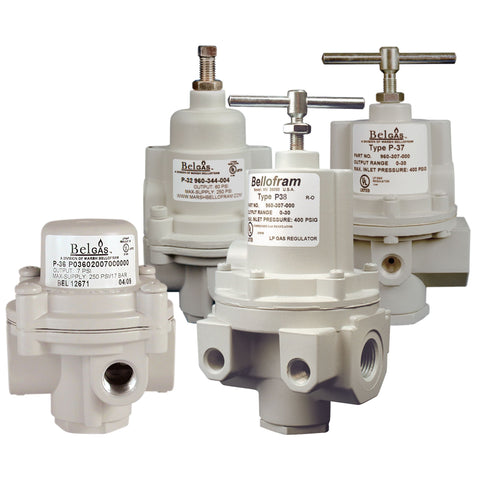

P32 Natural Gas and Propane Regulator
Superior regulation and excellent stability make the BelGAS P32 natural gas and propane regulator ideal for lower flow applications. Square head adjustment screw allows for easy in-field calibration. The Type P32 is also available with an optional handwheel adjustment. The use of a relief valve is recommended for this product in accordance with NFPA 58.
Features:- 60-mesh screen
- UL listed (Standard P32)
- NACE construction available
- Harmful particles blocked
- Non-Relieving
- Pneumatic Controllers
- Valve Positioners
- Actuation
- Fuel Gas
- Compressed Air
Model
P32
Series
Instrument Supply Series
Port Size
1/4 NPT
Sensitivity
1" Water Column
Spring Range
0-10, 0-30, 0-60, 0-120 PSIG
(0-0.7, 0-2, 0-4, 0-8 BAR)
(0-0.7, 0-2, 0-4, 0-8 BAR)
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Diaphragm Material
Nitrile Elastomer with
Polyester Fabric
Polyester Fabric
Product Description
Type P32 Natural Gas and Propane Regulator
Max Inlet Body Pressure
250 PSIG (17 BAR)
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
