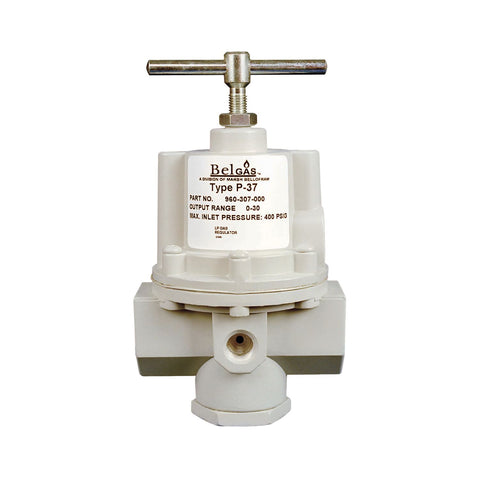

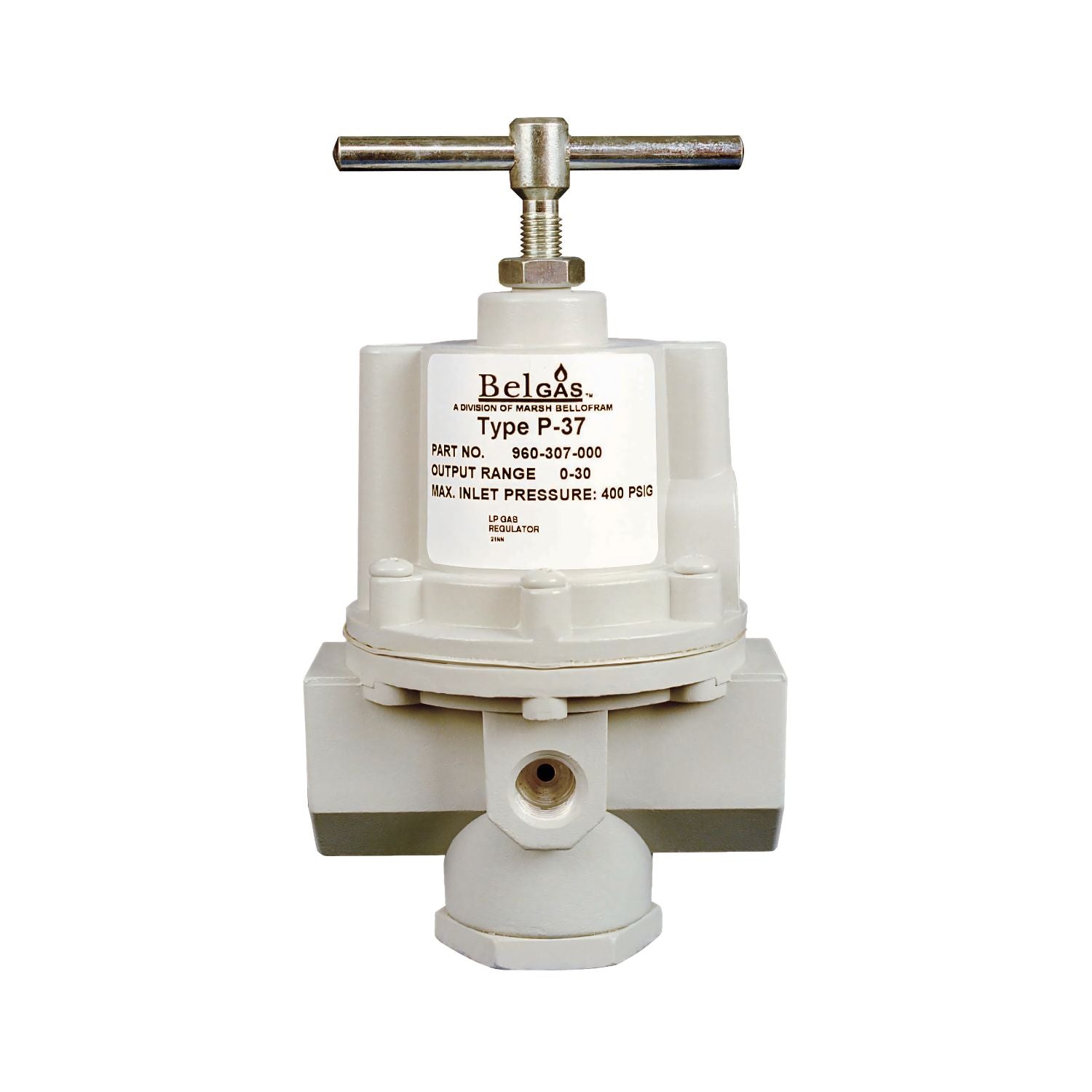

P37 Natural Gas and Propane Regulator
The BelGAS P37 natural gas and propane regulator contains many of the same characteristics as the P38, but at a reduced price. At 110 SCFM (16.5 Mbtu/hr), the P37 offers flow rates comparable to current market suppliers. The use of a relief valve is recommended for this product in accordance with NFPA 58.
Features:- Balanced pintle design
- High flow capacity
- Bubble tight/non-relieving
- Enclosed space use
- 16.5 Mbtu/hr. (110 scfm)
- High volume applications
- UL listed
- Non-Relieving
- Pneumatic Controllers
- Valve Positioners
- Actuation
- Fuel Gas
- Compressed Air
Model
P37
Series
Instrument Supply Series
Port Size
1/2, 3/4 NPT
Sensitivity
1" Water Column
Spring Range
0-10, 0-30, 0-60, 0-125 PSIG
(0-0.7, 0-2, 0-4, 0-8 BAR)
(0-0.7, 0-2, 0-4, 0-8 BAR)
Application(s)
Industrial
Pilot Operated
No
Connection
NPT
Diaphragm Material
Nitrile Elastomer with
Polyester Fabric
Polyester Fabric
Product Description
Type P37 Natural Gas and Propane Regulator
Max Inlet Body Pressure
400 PSIG (28 BAR)
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
