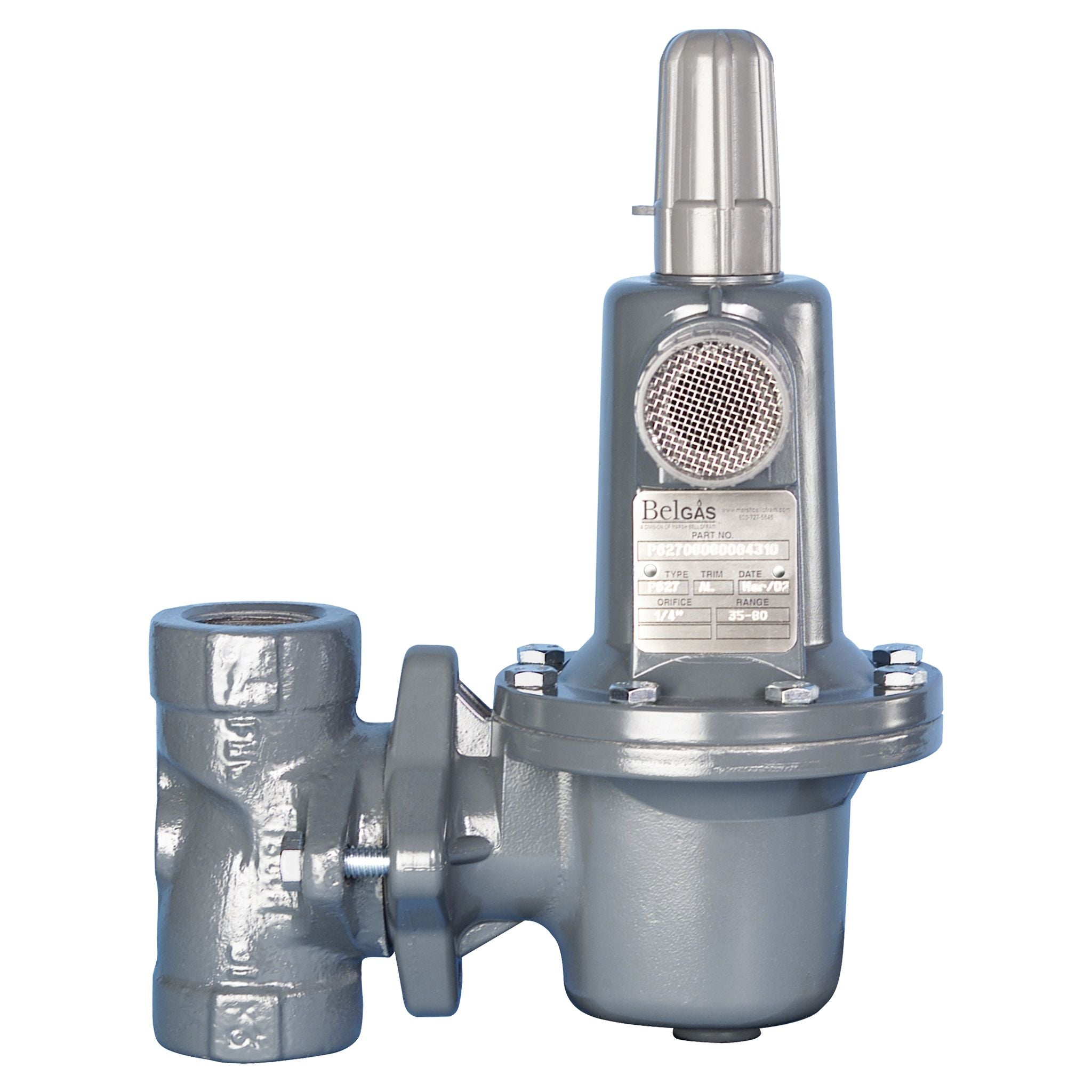

Type P627 Low and High Pressure Regulator
Type P627 from BelGAS is a spring loaded, direct-operated, low and high gas pressure regulator, designed to support a variety of applications in the oil and gas industries. These regulators provide durability, from the powder-coated epoxy exterior finish, as well as installation versatility, from the multi-position body and spring case configurations. These regulators are also available in an external pressure registration model (P627M), and NACE compliant construction, as well as with the choice of aluminum, steel or LCC body, as well as bonnet and diaphragm cases. The gas pressure regulators also feature a wide range of flow capacities to suit a wide range of requirements.
Features:- Wide Range of Flow Capacities
- Durable Powder Coated Exterior
- Installation Versatility
- NACE Construction Available
- Farm Tap Regulation
- Monitoring Regulators
- Gate Regulators
- Fuel Gas
- Gas Gathering
- Pressure Reduction
Pilot Operated
No
Filter Flange Type
150 RF Flanged,
300 RF Flanged,
600 RF Flanged,
900 RTJ
Filter Connection
NPT,
Flanged,
Socket Weld,
RTJ
Application(s)
Industrial, Commercial
Diaphragm Material
Nitrile (low pressure) or
Neoprene (high pressure)
Neoprene (high pressure)
Rebuild Kits
Yes
Orifice Material
Aluminum
Stainless Steel (NACE only
Stainless Steel (NACE only
Seat Material
Nitrile
Nylon
Fluorocarbon
Nylon
Fluorocarbon
Body, Bonnet, Diaphragm Material
Spring Case Aluminum
Temperature Range(s)
Steel, Iron
Body –20˚ to 180˚F (–29˚ to 82˚C)
CF8M Body –40˚ to 180˚F (–40˚ to 82˚C)
Body –20˚ to 180˚F (–29˚ to 82˚C)
CF8M Body –40˚ to 180˚F (–40˚ to 82˚C)
Spring Range
5–500 PSIG
Orifice Size
3⁄32"
1⁄8"
3⁄16"
1⁄4"
3⁄8"
1⁄2"
1⁄8"
3⁄16"
1⁄4"
3⁄8"
1⁄2"
Body Sizes
3⁄4 NPT
1 NPT
2 NPT
1 NPT
2 NPT
Max Inlet Body Pressure
Nylon Seat
2000 PSIG Steel / SS
1000 PSIG Ductile Iron
1485 PSIG Flanged Steel
Nitrile Seat 1000 PSIG All Units
Fluorocarbon
Seat 300 PSIG All Units
2000 PSIG Steel / SS
1000 PSIG Ductile Iron
1485 PSIG Flanged Steel
Nitrile Seat 1000 PSIG All Units
Fluorocarbon
Seat 300 PSIG All Units
Product Description
Type P627 Low and High Gas Pressure Regulator
Model
P627
Series
Type 627 Series
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
