BelGAS 200 Series - F270 Pilot Loaded Pressure Regulator

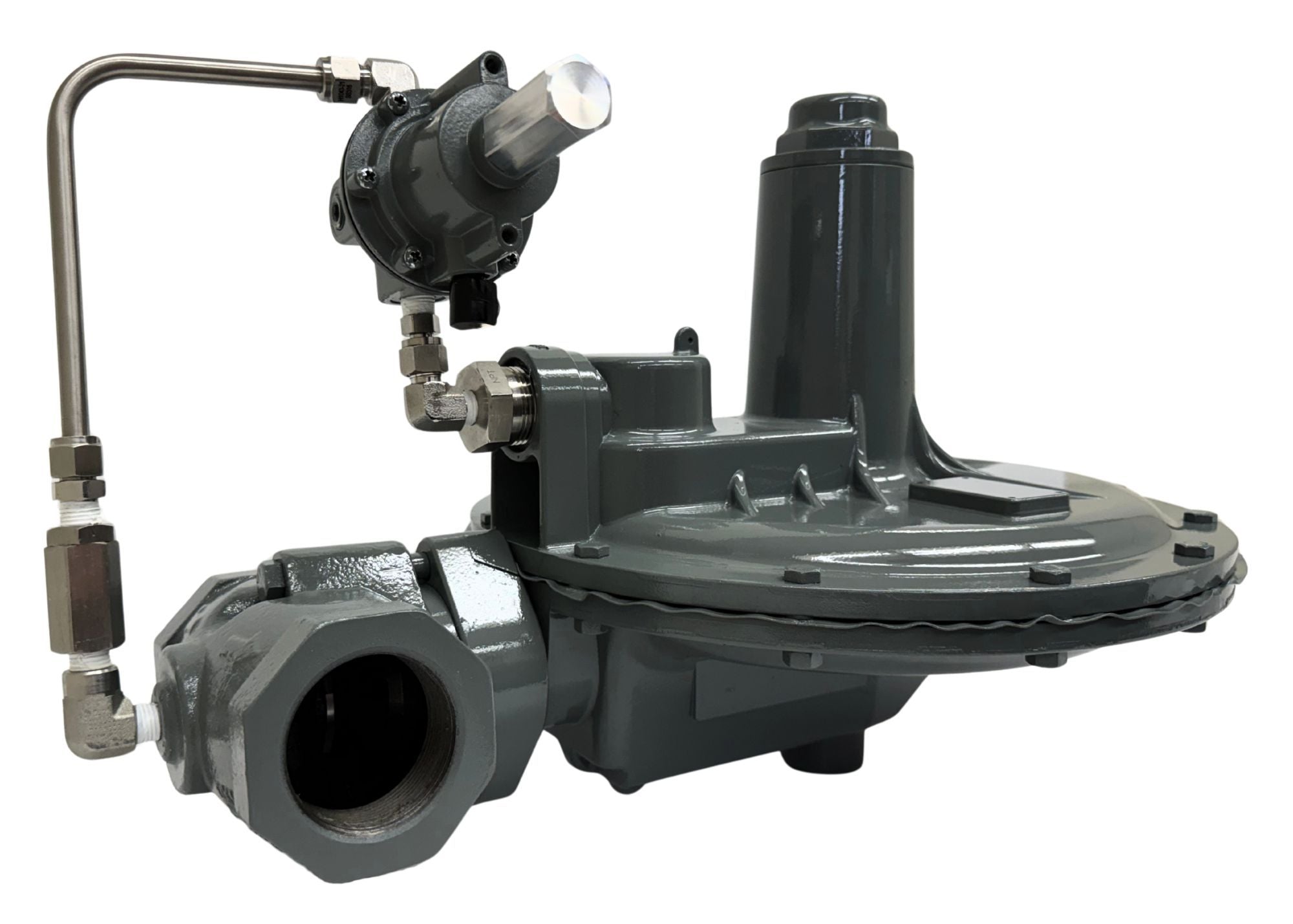

The BelGAS F270 pilot loaded pressure-reducing regulator provides superior performance when used in fixed-factor billing applications. It has a globe-style main regulator body and a factory-installed T70 pilot with pre-piped tubing. The F270D regulator has internal registration and the F270P regulator has external registration that requires a downstream control line. These regulators will be offered with a non-relieving T70 pilot.
Features:- External or Internal Pressure Registration
- Minimize Sudden Downstream Load Change
- High Accuracy
- Compressors
- Gas Engines
- Service Regulators
- Fixed Factor Billing
Model
F270
Weight
~30lbs.
Port Size
1.25" NPT
1.5" NPT
1.5" NPT x 2" NPT
2" NPT
1.5" NPT
1.5" NPT x 2" NPT
2" NPT
Body/Casing
Ductile Cast Iron or WCB Steel
Connections
150 RF Flange (Steel Units Only)
125 FF Flange (Iron Units Only)
125 FF Flange (Iron Units Only)
Orifice Size
1/4"
3/8"
1/2"
5/8"
3/4"
7/8"
1"
1-3/16"
3/8"
1/2"
5/8"
3/4"
7/8"
1"
1-3/16"
Seat Material
Aluminum
Pilot Operated
Yes
Bonnet Material
Aluminum
Connection
NPT,
Flanged
Flange Type
125 FF Flanged,
150 RF Flanged
Product Description
F270 Pilot Loaded Pressure Regulator
Temperature Range(s)
-20°F to 180°F (-29°C to 82°C)
Max Inlet Body Pressure
125 PSI
8.62 BAR
8.62 BAR
Maximum Outlet Pressure
35 PSI
Valve Plug/Orifice Material
Aluminum
Maximum Input/Supply Pressure
125 PSI
8.62 BAR
8.62 BAR
Body, Bonnet, Diaphragm Material
Body: Ductile Cast Iron or WCB Steel | Bonnet: Aluminum | Diaphragm: Nitrile
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
